Universal Thermal Camera Imager for IOS iPhone 256x192 IR Resolution USB Type-C
Fast Shipping
Estimated delivery in 3-5 daysEasy Returns
30-day returns, buyer pays return shipping
Specially designed for iOS devices, the IR101 turns your iPhone and iPad into a thermal imager. Offering high resolution imaging and an enhanced testing range, the IR101 infrared camera makes a perfect tool for home inspectors, electricians, mechanics,and even farmers.
1. 256 x 192 high resolution delivers images with great clarity.
2. Read temperatures of objects ranging between -4℉ and 1022℉ (-20℃ to 550℃).
3. High thermal sensitivity (40mk), detects temperatures with extreme accuracy 0.1℉ (0.1℃),
4. A maximum of ±2℃ or 2% for error.
5. 25Hz refresh rate enables the IR101 to read temperatures smoothly and reduce eye strain.
6. 11 optional color palettes customize the temperature display.
7. Picture-in-Picture mode combines IR imaging and visible imaging.
8. 3 Analysis Dimensions: Point, Line, and Surface mode.
9. Set upper and lower limits, and choose colors to display the temperature difference clearly.
10. Support Photo & Video recording, and monitoring temperature by waveform change.
Detect Temperature Accurately in Extensive Applications
Expansive testing range of -20℃ to 550℃(-4℉ to +1022℉) enables the IR101 to perform temperature reading in most environments. 40mk high thermal sensitivity can sense detailed temperature changes (Lower mk = higher sensitivity and better imaging). This thermal imager can perform temperature detection with ±2℃ or 2% of max temperature for error and measure temperatures down to 0.1℃ accuracy.
Note: The thermal error will be less than ±1℃ when the target temperature is below 100℃.
Expansive testing range of -4℉ to +1022℉(-20~550℃) enables the IR101 to perform temperature reading in most environments.
40mk high thermal sensitivity can sense temperature changes (Lower mk = higher sensitivity and better imaging).
This thermal imager can perform temperature detection with ±2℃ or 2% of max temperature for error and measure temperatures down to 0.1℃ accuracy.
Note: The thermal error will be less than ±1℃ when the target temperature is below 100℃.

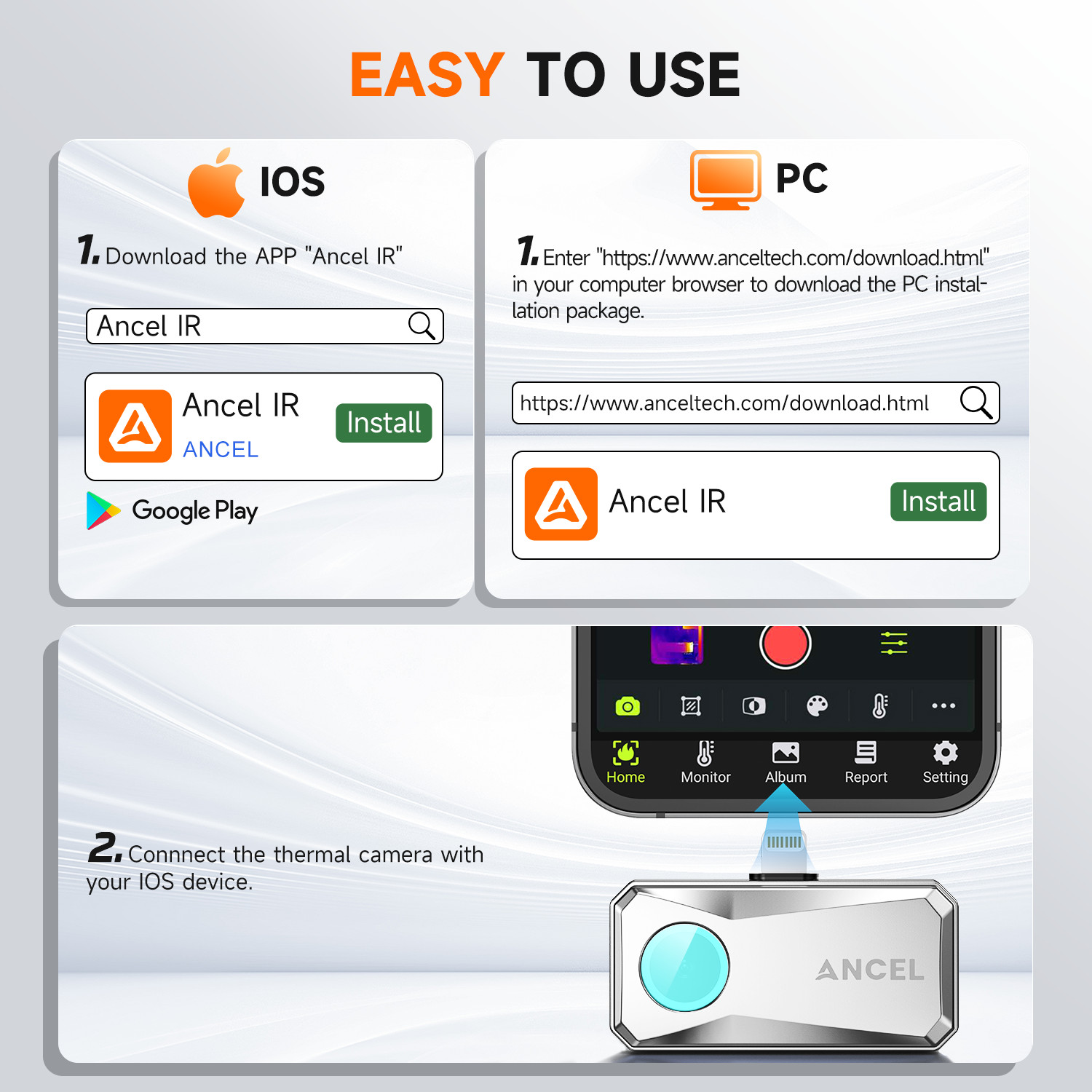

Compatible with iOS devices, the IR101 can turn your iPhone (iPhone 6 and above) or iPad (Lig*htning Connector) into an infrared thermal camera. Download the IR101 from the App Store and transform your iOS device into an all-purpose thermal camera, plug and play (Not Available for Mac).
Low consumption of 350mK lets the IR101 continuously work for 6-8 hours with a fully-cha*rged iPhone and 8-10h with a fully-char*ged iPad.
This infrared thermal camera allows you to accurately measure temperature differences from a safe distance.The IR101 is a perfect tool for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to protect crops and livestock.
This thermal camera allows users to set upper and lower limits, and choose corresponding colors, helping users to check temperature difference at a glance. The IR101 can also record smooth video with a 25hz refresh rate.
Manually select from 3 dimensions to monitor temperatures: Point, Line (Highest and Lowest), and plain. Add up to 3 areas for each dimension, allowing users to read temperature in 9 areas simultaneously. Choose from 11 color palettes for more possibilities.
The IR101 can take continuous thermal measurements of an area, storing the data in the App. This data can provide the high, low, and average temperature of objects over a period of time and generate a waveform graph to observe temperature changes intuitively.
Measuring 2.8 x 1.65 x 0.55 inches and weighing one ounce (or 30 grams), the pocket-sized camera is portable and easy to store, allowing you to monitor temperature whenever and wherever.
Customer service offer professional sup*port, please message us with any question.
The IR101 Comes With A Carry Bag, Cleaning Cloth, Quick User Guide, Package Box and 50cm (19.6 in.) Multifunctional Ada*pter Ca*ble.
On 25-Feb-2026 at 11:21:39 GMT, seller added the following information:
| Brand | ANCEL |
|---|---|
| Product | Handheld Thermal Camera |
| Temperature Range | -4℉ to 1022℉ (-20℃ to 550℃) |
| IR Sensor Resolution | 256x192 pixels |
| Distance To Spot Ratio | 0.25~5m |
| Thermal Sensitivity | 40mk |
| Field Of View | 56.0°x42.2°x71.3° |
| Display Resolution | 256x192 |
| Consumption | 0.25W |
| Spectral Range | 8~14μm |
| Test Precision | (0.18℉) 0.1℃ |
| Working Voltage | 5V |
| Recommended Distance | within 16.4ft (within 5m) |
|---|---|
| Ultra-high Accuracy | ±3.6℉ (2℃) |
| Standard Distance | 0.8ft (0.25m) |
| Frame Rate | 25Hz |
| Pixel Size | 12μm |
| Advantage 1 | 3 Dimensions & 9 Color Palettes |
| Advantage 2 | Precise Temperature Detection |
| Advantage 3 | Shutter Switch Sound |
| Advantage 4 | Image Enhancement Technology |
| ⭐System Available | iOS Phones/ Tablets/ Laptops |
| ⭐NOTE | NOT Compatible with Android |
